Quartz Filtration

Quartz Wool and Quartz Sintered Discs/Quanrtz Frits



   Quartz Wool & Sintered Discs

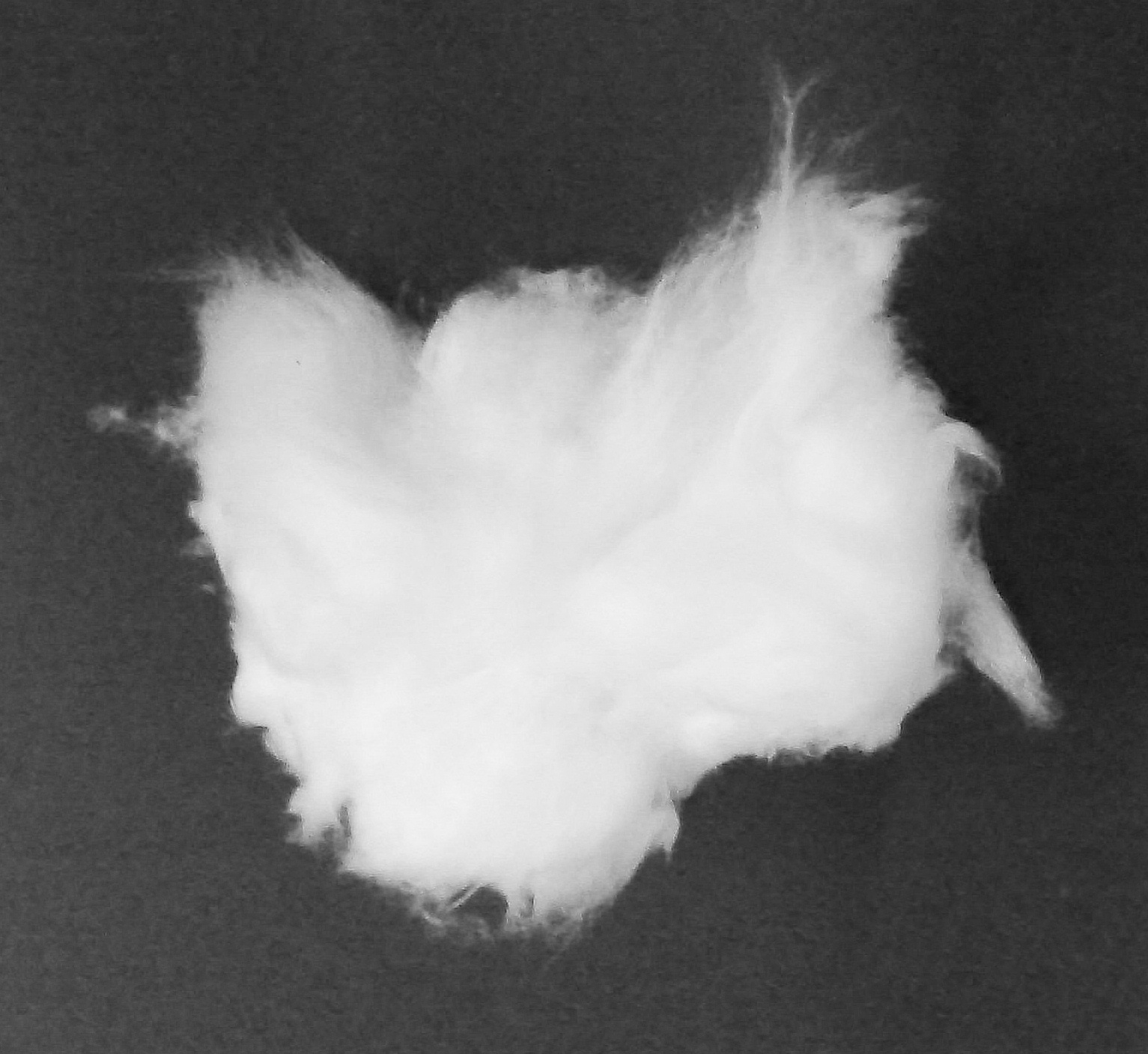

   Quartz Wool

   Quartz Wool is made from pure Quartz fibre it displays all the characteristics of Quartz glass

   Quartz Wool is available from 10 grams - 1kg bags. Available in:

  •  Ultrafine (2 micron diameter),

  •  Fine   (4 micron diameter)

  •  Coarse  (9 - 30micron diameter)

   Uses include

  • High temperature insulation, up to 1050 Centigrade (long term exposure). Excellent Heat Resistant insulation

  • Filtration of high temperature corrosive gases & liquids due to its excellent chemical resistance

  • Barrier plug for combustion tubes.

  • Furnace insulation, low thermal shock - high electrical resistivity

  • Asbestos replacement & low odour

     Quartz Wool 4 micron strand

    Quartz wool, silica wool, quartz wolle, quartz wolle, asbestos replacement, quartz felt

    quartz mat, quartz matting, quartz fibres, quartz wool, glass wool, quartz wool, high temperature

    filtration, high temperature filters, acid filter, acid filters, acid filtration, quartz wool, Quartz wool

    Quartz wool, silica wool, quartz wolle, quartz wolle, asbestos replacement, quartz felt

    quartz mat, quartz matting, quartz fibres, quartz wool, glass wool, quartz wool, high temperature

    filtration, high temperature filters, acid filter, acid filters, acid filtration, quartz wool, Quartz wool







Quartz Filters / Quartz Sinters / Quartz Frits or Fritted Discs

High temperature filtration is possible thanks to Quartz filters, otherwise known as Quartz  Sintered discs or Quatz  fritted discs/ Quartz Frits.

Quartz filters are used in:

  • Acid filtration

  • High temperature filtration

  • Corrosive Gas filtration

  • Radioactive filtration

  • Alkali filtration

Sintered or fritted discs are made from fusing Quartz granules together. Available in the following  porosity grade.

Porosity Grade  Average Pore Size in Microns µm Uses
00 250 - 500 Liquid & Gas Distribution.
0 160 - 250 Gas distribution & Gas distribution in liquids at low pressure

Filtration of very coarse precipitates
1 100 - 160 Coarse Filtration, liquid distribution
2 40 - 100 Fine filtration

Mercury filtration
3 16 - 40 Analytical filtration (including work with medium fine preciptitates)

Filtration in cellulose chemistry

Fine Gas filtration
4 10 - 16 Analytical fine filtration

Non return & stop valves for mercury
Diameter & Thickness of standard Quartz Filters
Standard Diameter in mm Thickness Catalogue Number Available Porosity
  10
  15
  17
  20
  25
  30
  35
  40
  45
  50
  55
  60
  70
  80
  90
 100
 110
 120
 130
 140
 150		     2 - 3
   2 - 3
   2 - 3
   3 - 5
   3 - 5
   3 - 5
   3 - 5
   3 - 5
   3 - 5
   4 - 6
   4 - 6
   4 - 6
   4 - 6
   4 - 6
   4 - 6
   6 -10
   6 -10
   6 -10
   6 -10
   6 -10
   6 -10 		  QSD   10
  QSD   15
  QSD   17
  QSD   20
  QSD   25
  QSD   30
  QSD   35
  QSD   40
  QSD   45
  QSD   50
  QSD   55
  QSD   60
  QSD   70
  QSD   80
  QSD   90
  QSD  100
  QSD  110
  QSD  120
  QSD  130
  QSD  140
  QSD  150		     0 - 4
   0 - 4
   0/00 - 4
   0/00 - 4
   0/00 - 4
   0/00 - 4
   0/00 - 4
   0/00 - 4
   0/00 - 4
   0/00 - 4
   0/00 - 4
   0/00 - 4
   0/00 - 4
   0/00 - 4
   0/00 - 4
   0/00 - 4
   0/00 - 3
   0/00 - 3
   0/00 - 3
   0/00 - 3
   0/00 - 3

   The sizes above are the industry standard, if you require different diameter sizes please contact our office staff for a quotation . Sintered discs can be fused into Quartz tubes, if you require this service please send a drawing with clear measurements so that we may quote you.

Unlike Quartz Wool, Quartz  Sintered discs can be fused into tubing to provide a permanent filtering solution. When attached to interchangeable joints it provides an excellent way of providing an interchangeable filtering system.



Quartz Filter. Quartz Sintered Discs. Porosity range 0 - 4. Diameter range from 2mm -85mm Quartz Filter. Quartz fused Sintered tubes/ Fritted Tubes Quartz Sintered Tubes Porosity 3. Quartz Filter

 Shown In Photographs

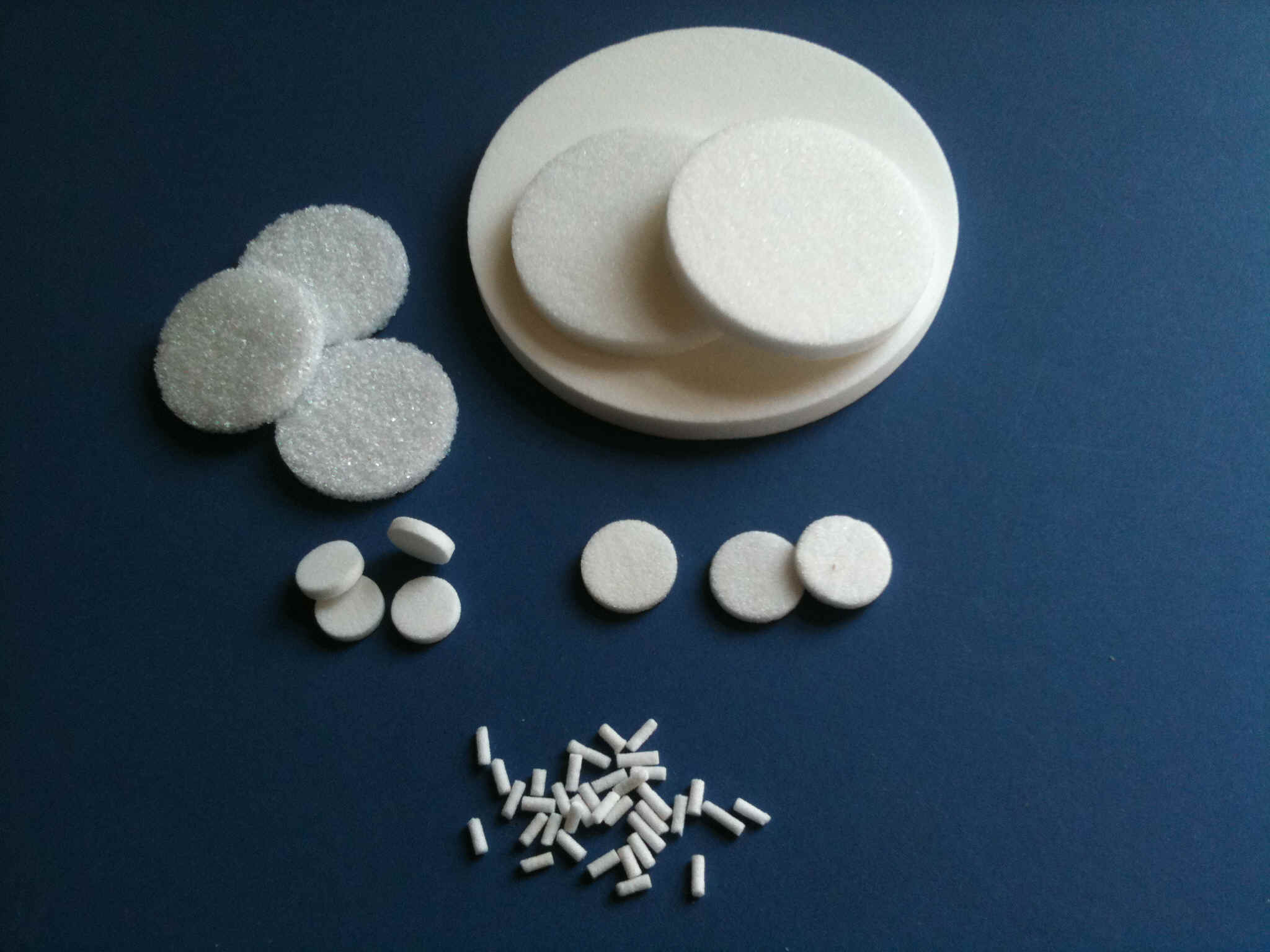

  • Photo 1: Variety of Quartz Filters/Sinters ranging from Porosity 0 - Porosity 4. Sizes from 2mm od - 85mm od

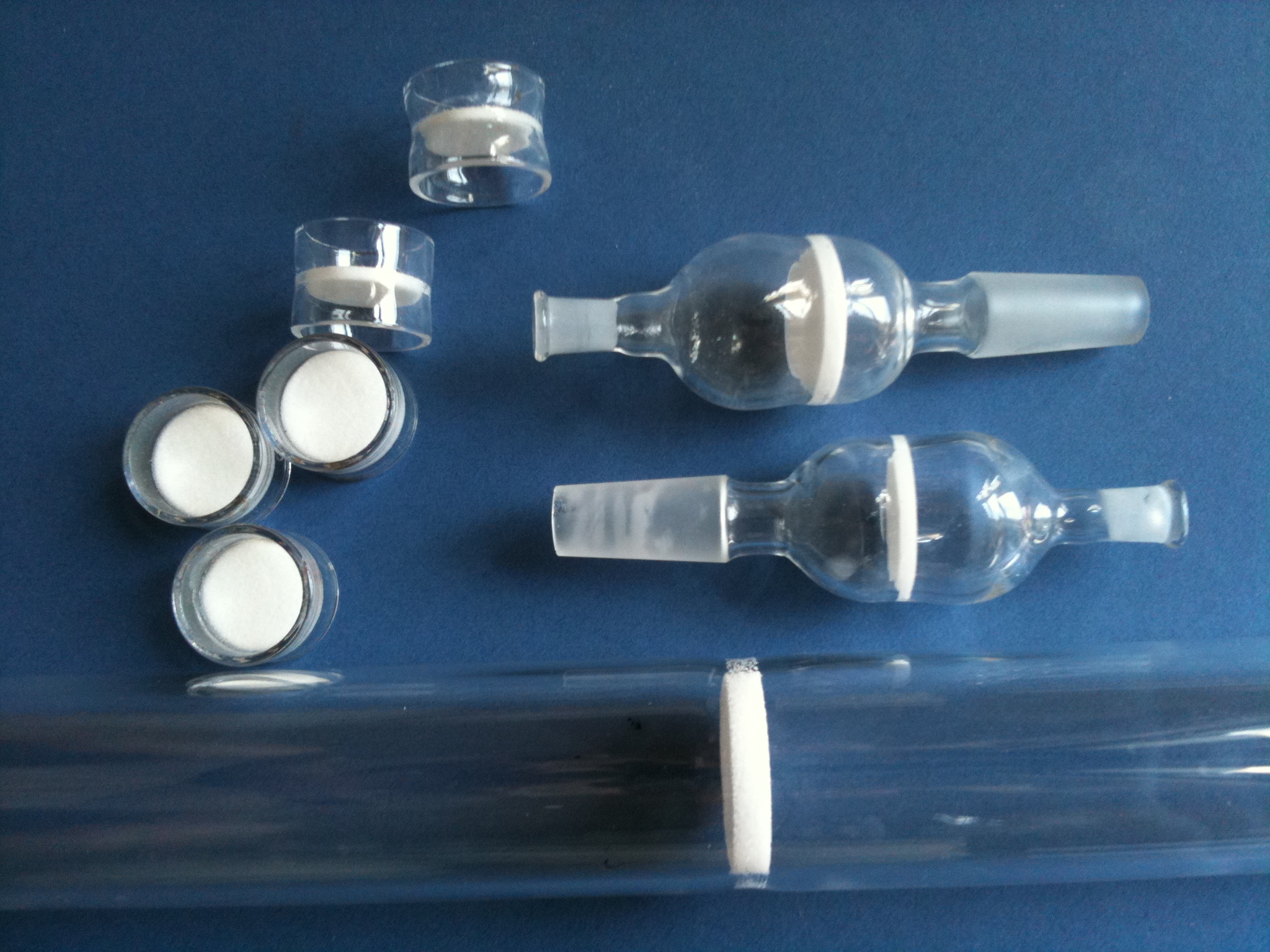

  • Photo 2: Quartz Sinters fused into Quartz Tubes (various sizes) along with Adaptors from

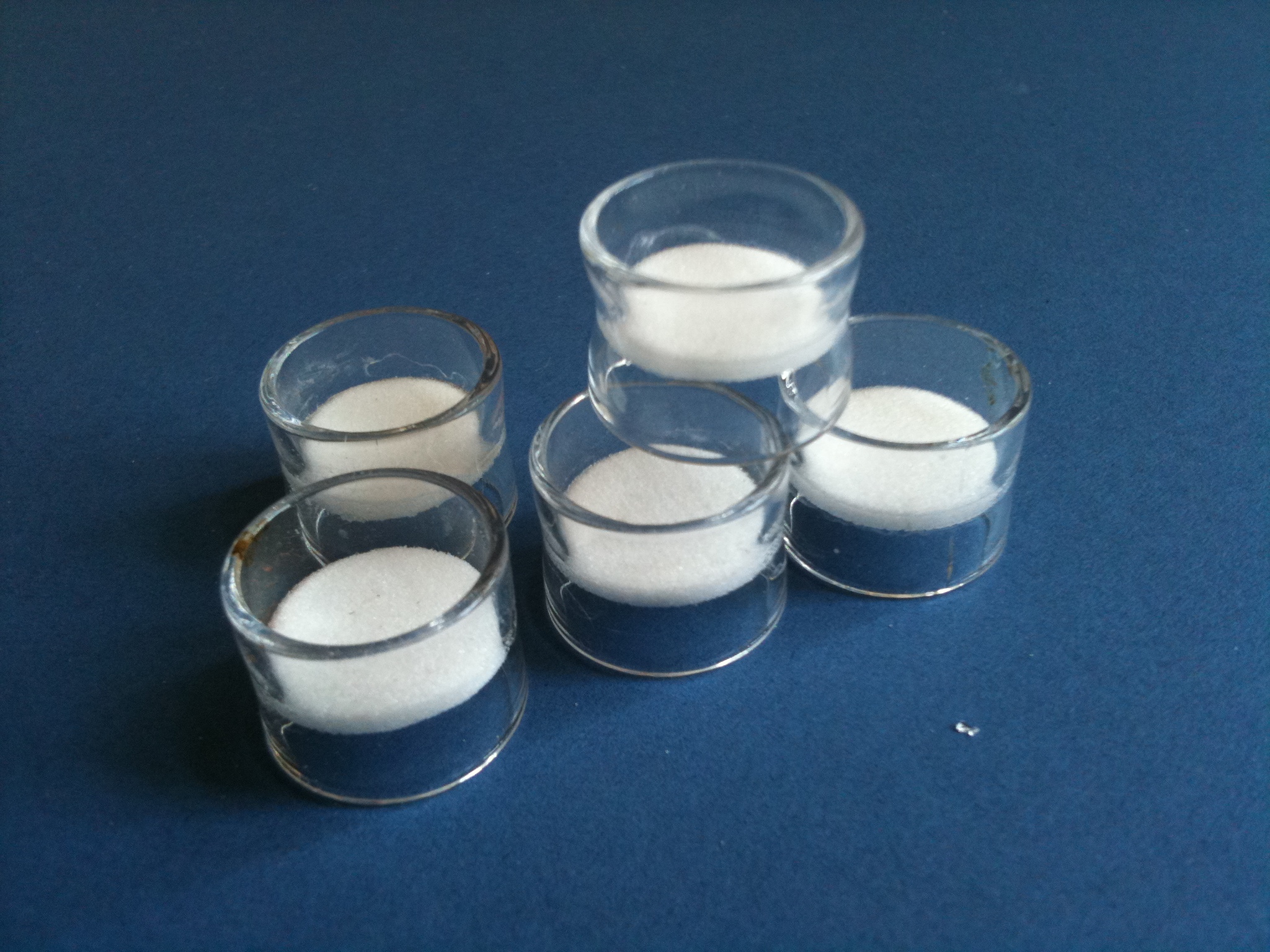

  • Photo 3: Quartz Sinters Porosity 3 fused into Quartz thin wall tubes
